How Does Diamond Dotted Paper Improve Transformer Insulation Performance?

Abstract

Diamond dotted paper is a specialized insulation material widely used in electrical engineering applications, particularly in transformers, motors, and high-voltage equipment. It is engineered by combining cellulose-based insulating paper with a diamond-shaped epoxy resin pattern that enhances both thermal stability and dielectric strength. This article explains how diamond dotted paper works, its structure, benefits, applications, and selection considerations. It also addresses common challenges faced by engineers and procurement specialists when choosing insulation materials for critical power systems.

Table of Contents

• 1. Introduction to Diamond Dotted Paper
• 2. Structure and Material Composition
• 3. Key Electrical and Mechanical Properties
• 4. How It Works in Insulation Systems
• 5. Applications in Electrical Equipment
• 6. Performance Benefits Overview
• 7. Selection and Usage Guidelines
• 8. Common Issues and Engineering Solutions
• 9. Frequently Asked Questions
• 10. Conclusion

1. Introduction to Diamond Dotted Paper

In modern electrical power systems, insulation reliability directly determines operational safety and efficiency. Among various insulation materials, diamond dotted paper has become a preferred choice due to its enhanced bonding strength and improved oil impregnation characteristics.

Unlike conventional insulating paper, diamond dotted paper features a patterned epoxy resin coating that activates under heat and pressure, forming a strong, uniform bond within transformer windings. This structure significantly reduces voids and improves dielectric performance under high-voltage stress.

2. Structure and Material Composition

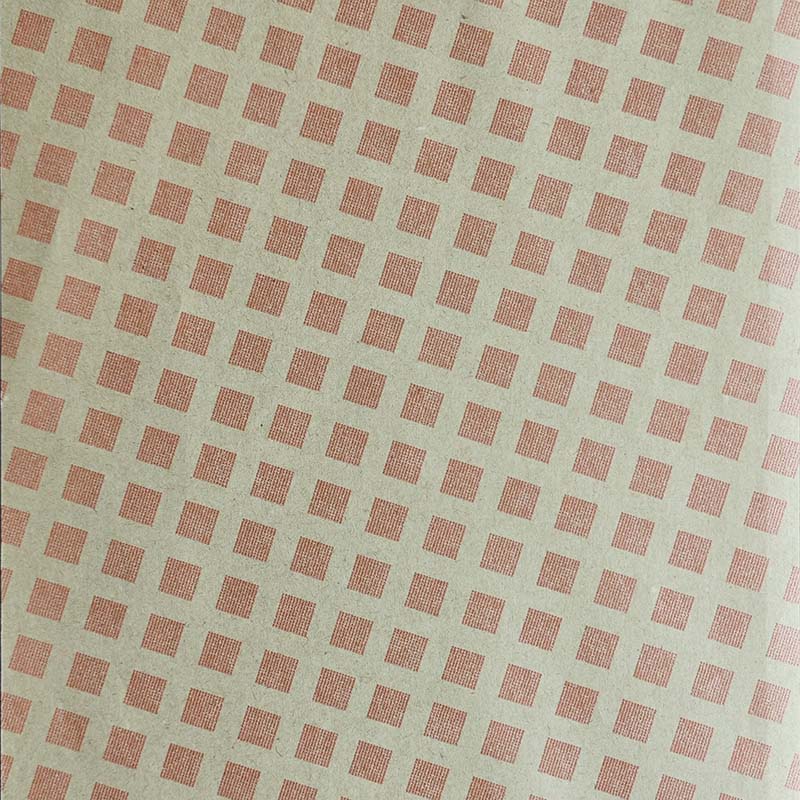

Diamond dotted paper is primarily composed of high-purity electrical-grade cellulose paper and thermosetting epoxy resin arranged in a diamond-shaped dot matrix pattern. This combination ensures both flexibility and structural reinforcement during thermal curing.

• Base material: High-density insulating cellulose paper
• Adhesive pattern: Thermosetting epoxy resin in diamond grid layout
• Activation condition: Heat and pressure during transformer winding process
• Final structure: Laminated insulation system with bonded layers

This engineered structure ensures optimal oil penetration while maintaining mechanical integrity under vibration and thermal cycling.

3. Key Electrical and Mechanical Properties

4. How It Works in Insulation Systems

The working mechanism of diamond dotted paper relies on controlled epoxy activation. During transformer coil assembly, heat and pressure trigger the epoxy dots to melt and bond adjacent layers of paper. Once cooled, the resin solidifies, forming a rigid and void-free insulation structure.

This process eliminates microscopic air gaps that typically cause partial discharge in high-voltage systems. As a result, the insulation system becomes more uniform and resistant to electrical stress.

• Heat activation improves bonding strength
• Pressure ensures uniform resin distribution
• Curing process enhances dielectric uniformity
• Final structure minimizes electrical discharge risks

5. Applications in Electrical Equipment

Diamond dotted paper is widely used in electrical insulation systems where reliability and thermal endurance are critical. Its most common applications include:

• Power transformers (core and winding insulation)
• Distribution transformers
• High-voltage motors and generators
• Reactors and inductors
• Industrial electrical equipment insulation layers

In transformer manufacturing, it plays a key role in improving winding stability and extending operational lifespan under continuous load conditions.

6. Performance Benefits Overview

The advantages of diamond dotted paper extend beyond basic insulation, offering a comprehensive improvement in electrical system performance.

• Enhanced dielectric reliability under high voltage stress
• Reduced risk of partial discharge failures
• Improved thermal endurance in continuous operation
• Better mechanical reinforcement of winding structures
• Increased service life of transformers and motors

These benefits make it a preferred solution for engineers aiming to improve system stability and reduce long-term maintenance costs.

7. Selection and Usage Guidelines

Choosing the right grade of diamond dotted paper requires consideration of voltage class, thermal requirements, and oil compatibility. Engineers should evaluate:

• Operating voltage level of the equipment
• Thermal class rating of insulation system
• Thickness and resin distribution uniformity
• Compatibility with transformer oil types
• Mechanical stress conditions during operation

Proper handling during installation is also essential to ensure optimal bonding and long-term performance.

8. Common Issues and Engineering Solutions

9. Frequently Asked Questions

Q1: What makes diamond dotted paper different from regular insulation paper?
It contains epoxy resin in a diamond pattern that bonds under heat and pressure, improving strength and dielectric stability.

Q2: Can it be used in all transformer types?
It is suitable for most oil-immersed transformers, especially medium and high-voltage applications.

Q3: Does it improve transformer lifespan?
Yes, by reducing partial discharge and improving thermal stability, it helps extend operational life.

Q4: Is special handling required during installation?
Yes, controlled temperature and pressure conditions are required to activate the resin bonding system effectively.

10. Conclusion

Diamond dotted paper represents a critical advancement in insulation technology for modern electrical systems. Its unique structure enhances dielectric strength, mechanical stability, and thermal endurance, making it essential in high-performance transformer design.

By integrating this material into insulation systems, manufacturers can achieve improved reliability and reduced failure rates under demanding operating conditions. For engineering teams seeking consistent quality and technical support, Hanyao provides professionally engineered diamond dotted paper solutions tailored to industrial requirements.

Hanyao — contact us today to explore how our diamond dotted paper solutions can improve your transformer insulation performance and support your project needs.
